Auy Factory Outlet F4BSS 40M-CPSS-DFH UCF306 UCF320 Y-Bearings High Precision
Conveyor & Transmission Bearings

Auy Factory Outlet F4BSS 40M-CPSS-DFH UCF306 UCF320 Y-Bearings High Precision

Auy Factory Outlet Customized F4bss 40m-Cpss-Dfh 40m Cpss Dfh Ucf 306 Ucf 320 Y-Bearings Y Bearings

Inner DiameterOuter DiameterThickness
Varies by modelVaries by modelStandard for series

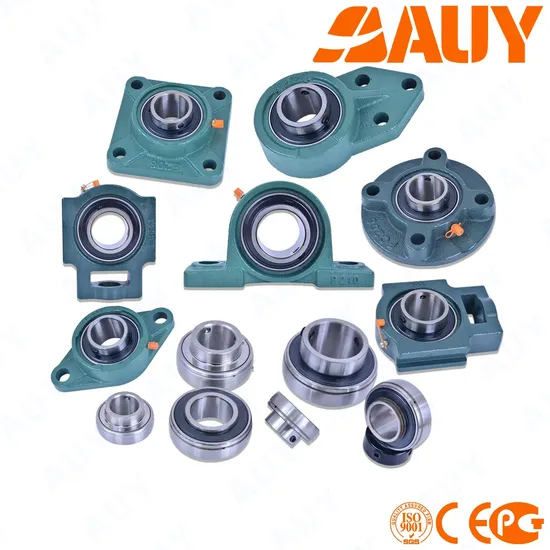

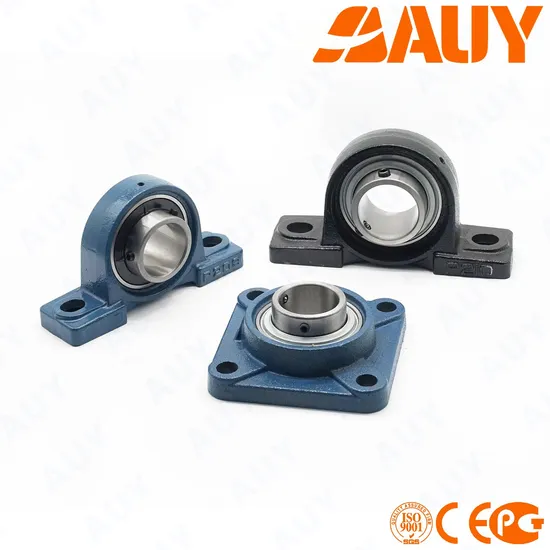

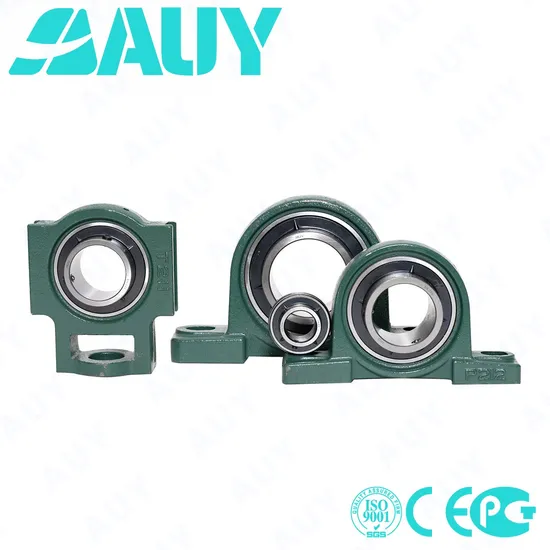

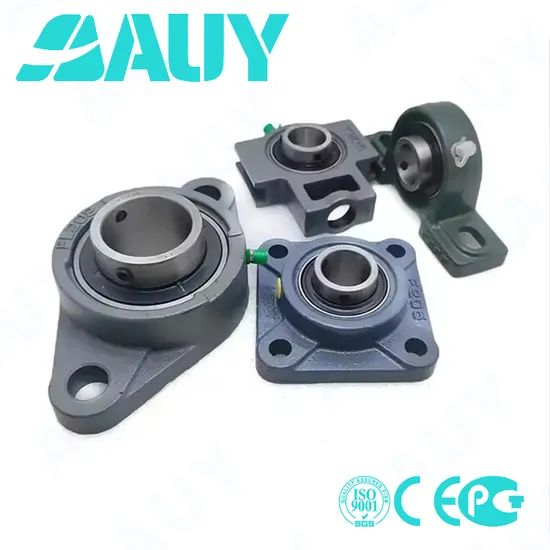

Precision Y-bearings designed for reliable performance in industrial applications. Models include F4BSS, CPSS-DFH, and UCF series (306, 320). Suitable for high-load and continuous operation environments.

  • Seal & load matched to dutySelected for dust, moisture, washdown and 24/7 running.
  • Written quotationStock status, lead time and shipping terms stated.
  • Export documents suppliedShipped with tracking and the matching export paperwork.
  • Old units identifiedUnmarked units matched from photos and mounting dimensions.
Get a Quote Ask on WhatsApp

Applications

Belt ConveyorsBelt Take-Up UnitsBucket ElevatorsConveyor Pulleys & Drive ShaftsMining, Cement & AggregatesOverhead Conveyors
Before You Order

Check these three points first

Shaft size alone does not guarantee a fit. These three checks prevent units that arrive and do not match the existing frame.

  • Shaft diameter

    Measure the actual shaft, not the old part number. Note the locking type: set screw, eccentric collar or adapter sleeve.

  • Bolt spacing & mounting

    Pillow block, flanged or take-up frame. Give the bolt centre distance and centre height so the unit drops into the existing frame.

  • Operating environment

    Dust, water, washdown, load and running hours decide the seal design and bearing series.

Technical Data

Specifications

Model, category and dimensional data for Auy Factory Outlet F4BSS 40M-CPSS-DFH UCF306 UCF320 Y-Bearings High Precision. Compare these against your existing unit before ordering; send your measurements if anything differs.

CategoryPillow Block Bearing
Product Details

Design, sealing and application notes

Basic Info.

Model NO.
F4BSS 40M-CPSS-DFH 40M CPSS DFH UCF 306 UCF 320

Feature
Vacuum, Magnetically, Low Temperature, Corrosion Resistant, High Temperature, High Speed

Rows Number
Standard Specifications or Customized

Raceway
Standard Specifications or Customized

Material
Cast Iron or Brass or Bearing Steel or Stainless S

Bearing Block Model
Standard Specifications

Model No.
F4bss 40m-Cpss-Dfh 40m Cpss Dfh Ucf 306 Ucf 320

Product Name
Pillow Block Bearing

OEM Service
Custom Bearing′s Size, Logo, Packing

Certificate
CE

Precision
P0 P6 P5 P4 P2 or ABEC1 ABEC3 ABEC5 ABEC7 ABEC9

Radial Clearance
C0, C2, C3, C4, C5

Vibration
Z1V1 Z2V2 Z3V3 Z4V4

Marking Methord
Laser / Mechanical / Electric Corrosion

Performance
High Speed, Low Noise, Long Service Life

Time of Delivery
in Stock, or 7-15 Work Day

Sealling Way
Dual Seals & Triple Lips Seals & F Seals

Logo Custom
Accept

Package Custom
Accept

Produce Cycle
30 Days If Customize

Application
Automotive Industry/Aerospace/Heavy Machinery

Transport Package
Universal Packing or Auy Packing

Specification
Standard Specifications or Customized

Trademark
AUY

Origin
China

HS Code
848320000

Production Capacity
88888 Pieces/Week

Why Full Bearing Range Company

Conveyor and transmission specialists, plus every other bearing your plant needs.

Full Bearing Range Company selects conveyor bearings by dust, load and continuous-duty conditions, then supplies the rest of the plant's bearings on the same order, so your maintenance team deals with one supplier.

Upgrade path for repeat failures

  • Heavier series or upgraded seal proposed
  • Based on your failure history and duty
  • No change made without your approval

Seals for dust, water and washdown

  • Seal choice matched to contamination level
  • Multi-lip options for dusty tail and take-up positions
  • Prevents early failures caused by the wrong seal

Whole-plant range, one shipment

  • Mounted units, inserts, taper and spherical roller bearings
  • Deep groove, angular contact, thrust and precision bearings
  • Housings, sleeves, locknuts, seals and lubricants
